Main functions and introduction of the equipment:

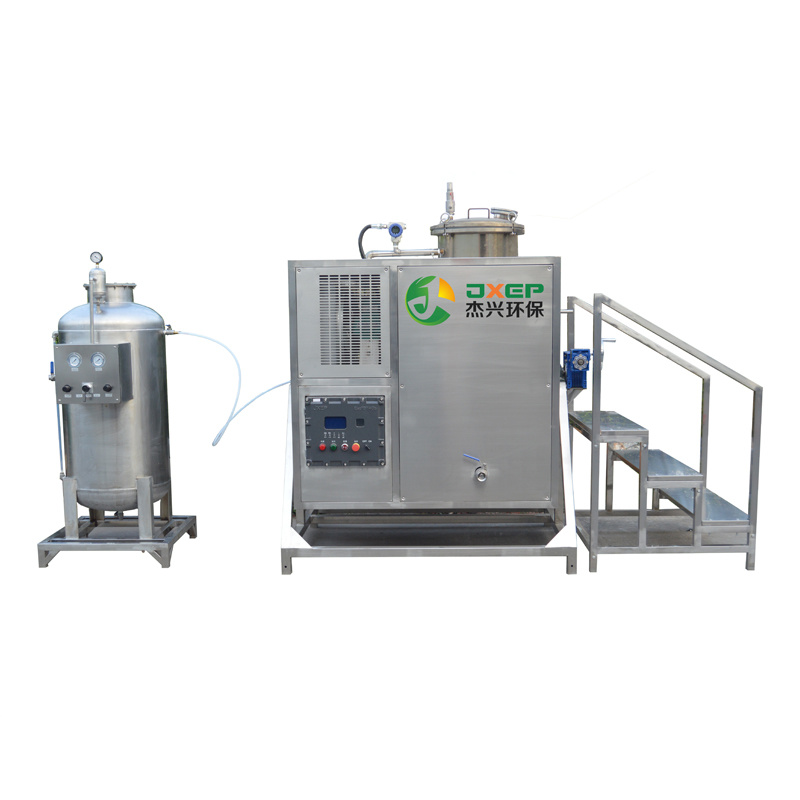

1: Air cooled/water-cooled continuous solvent recovery machine, with a feed capacity of 250 liters, a total tank capacity of 320 liters, a power of 16KW, can recover 50-80 liters of solvent per hour, and recover more than 95% of the solvent,
2: Pneumatic and manual slag discharge dual protection, with a bucket thickness of 3MM, SUS304 stainless steel, and a slag discharge port of DN80-100 pneumatic valve,
3: Explosion proof display screen with external protective cover, a safer and faster recycling device:
4: Configure a spiral wound tube condenser with an inner tube of 316L and an outer shell of 304 stainless steel, with a thickness of 1MM. The equipment includes sound and light alarm devices
5: Equipped with a thermal oil circulation device, the thermal oil is uniformly heated in the equipment, making it safer
6: The electronic control part adopts Siemens, Schneider, Omron, SMC，CKD， Waiting for component control
7: Equipped with an elevated platform, the residue can be directly discharged into large barrels
8: Mitsubishi PLC and Mitsubishi temperature module combination, temperature can be accurate to decimal point, Siemens PLC can also be selected
9: The equipment is equipped with a pressure control system. When the pressure exceeds 0.04 megapascals, the equipment will shut down and sound an alarm
10: The equipment is equipped with a 1-inch diameter safety valve to ensure that there is no pressure inside the bucket
11: The equipment is equipped with an electronic dual temperature control system. If the main system is damaged, there is a backup system to prevent safety hazards caused by equipment overheating
There are many functions of the equipment, and the above are only outstanding configurations for reference. The equipment can be used in industries such as painting, coating, electronics, and hardware. This equipment has low power, fast recycling time, and is more energy-efficient. For customers who require fast recycling speed, this model is more energy-efficient and fast.
