Main functions and introduction of the equipment:

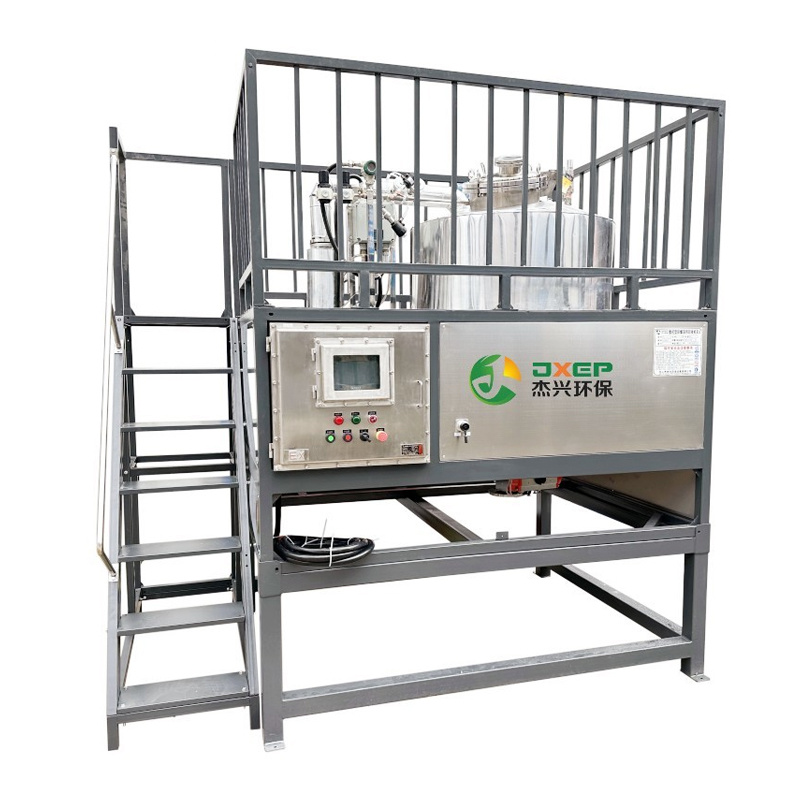

1: Water cooled continuous solvent recovery machine, with a feed capacity of 450 liters, a total tank capacity of 550 liters, a power of 32KW, recovers 100-200 liters of solvent per hour, and recovers more than 95% of the solvent,
2: Pneumatic and manual slag discharge dual protection, with a bucket thickness of 6MM, SUS304 stainless steel, and a DN100 pneumatic valve for the slag discharge outlet,
3: Two sets of control systems, bidirectional protection system, even if one system fails, the other system plays a protective role:
4: Configure a spiral wound tube condenser with an inner tube of 316L and an outer shell of 304 stainless steel, with a thickness of 1MM. The equipment includes sound and light alarm devices
5: Equipped with a thermal oil circulation device, the thermal oil is uniformly heated in the equipment, making it safer
6: The electronic control part adopts Siemens, Schneider, Omron, SMC，CKD， Waiting for component control
7: Equipped with an elevated platform, the residue can be directly discharged into large barrels
8: Mitsubishi PLC and Mitsubishi temperature module combination, temperature can be accurate to decimal point, Siemens PLC can also be selected
9: The equipment is equipped with a pressure control system. When the pressure exceeds 0.04 megapascals, the equipment will shut down and sound an alarm
10: The equipment is equipped with a 1-inch diameter safety valve to ensure that there is no pressure inside the bucket
11: The equipment is equipped with an electronic dual temperature control system. If the main system is damaged, there is a backup system to prevent safety hazards caused by equipment overheating
12: Equipped with nitrogen protection device for safer use of the recycling machine
13: Equipped with air detection device and window light
14: Equipped with dual level control, the main control adopts German imported liquid level
15: Standard PTFE coating inside the bucket, conical bucket for easier slag discharge
16: This device has been designed, researched, and evaluated for safety products by BASF in Germany and China
The device has many functions, and the above are only outstanding configurations for reference. The device can be used in industries such as painting, coating, electronics, hardware, etc. This device has low power, fast recycling time, and is more energy-efficient. For customers who require fast recycling speed, this device is more energy-efficient and fast. It can be compared with German equipment, with extremely high configuration and a 5-year warranty for the entire machine.
